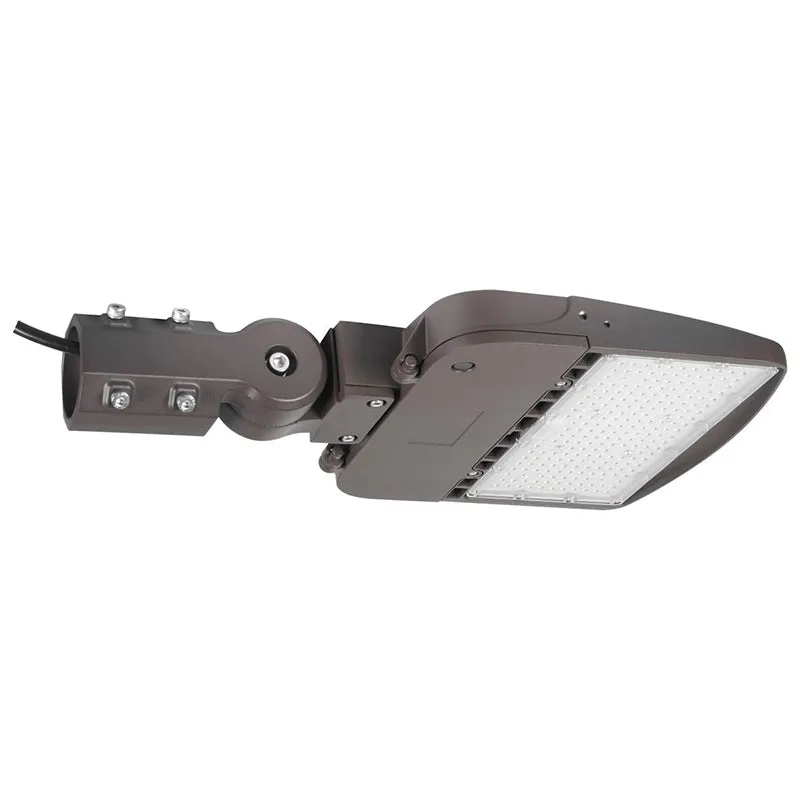

Westgate STL3 150W LED Street/Roadway Light With NEMA Twist-Lock Photocell Socket, 480V

Description

This outdoor lighting is ideal for general site lighting, street, roadway, alleys, loading docks, doorway, pathway, and parking areas.

Features

• Finish: Light Grey
• Wattage: 150W
• Voltage: 480V
• Color Temperature: 5000K
• Lumens: 19500
• CRI:80+
• Dimming: 0-10V Dimming
• Die-cast Aluminum with Powder Coat Finish
• Lens Type: Optical TYPE III Lens, High Light Transmittance PC, Anti-UV and Flame Resistant
• Cord Type: 40″ SJTW 18/3 AWG Cable
• Driver Located in Isolated Compartment for Improved Thermal Management
• With 2-15/16” Diameter Pole Entry with Adapter Bracket Inside for Smaller Pole Diameters
• With NEMA twist-lock Photocell Socket (Shorting Cap included)
• Photo Sensor Not Included (Sold Separately)
• IP 65 rated

Dimension

• Length: 21.8″
• Width: 12.25″
• Height: 4.8″

Estimated Life

• Rated Life: 70,000 hours

Warranty

• 7-year warranty

Document

• Spec Sheet
• Instruction Sheet
• STL3-150W .IES
