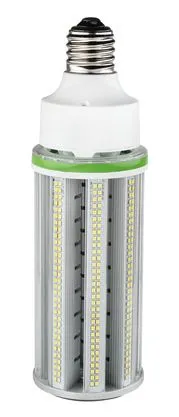

Westgate CL-EHL-120W-50K-E39

CL-EHL-120W-50K-E39 Product

Ideal for retrofitting existing HID highbay shoebox flood light or
wall pack fixtures.

SPECIFICATIONS:

Electrical SPECIFICATIONS:
• Voltage: 120~277VAC, 50/60Hz
• Wattage: 120W
• Power factor: >0.90
• Efficacy: 125~155LM/W

HOUSING SPECIFICATIONS:
• Big heat sink, No fan
• PC and Aluminum housing and Sealant pouring for
whole driver
• Meet 4KV surge immunity level
• Operating temperature: -40°F to 176°F
• Minimum Enclosed Space Dimension: 17.3”(H) x 9.4”(D)
and 1547 Cubic in.
• Suitable for damp location

LIGHTING SPECIFICATIONS:
• Lamp Base: E39 Mogul Base
• LED Type: SMD2835
• Total lumens: 17400LM/15600LM
• Color temperature: 5000K/3000K
• Color rendering index: >80
• Beam angle: 360°

Warranty : 5 Year Warranty
