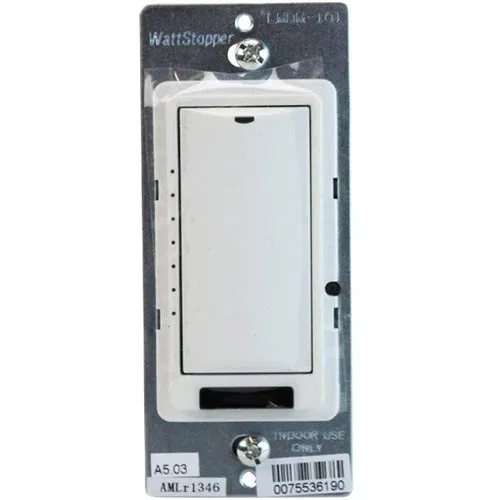

Wattstopper LMSW-108 Digital Switch, 8-button w/infrared

Description

LMSW-100 Series Wall Switches are low voltage devices for energy-saving manual on/off control of one or more loads from one or more locations. They are part of a Digital Lighting Management (DLM) system and can control any load(s) connected to DLM room controllers.

Features

• Wall Plate not included
• Color: White, Black, Gray, Ivory, LightAlmond, Red
• Voltage: 24V
• Current consumption: 5mA
• DLM local network connection: 2 RJ45 ports
• Hidden configuration button to access Push n’ Learn
• Digital Lighting Management components plug together on a free-topology Category 5e DLM local network
• Infrared (IR) transceiver
• Switches may be used for multi-way control
• Each button can control individual or multiple loads, or one scene; LED indicates status

Dimensions

• Width: 1.7″
• Height: 4.1″
• Depth: 1.3″

Warranty

• 5-year warranty

Documents

• Spec Sheet
