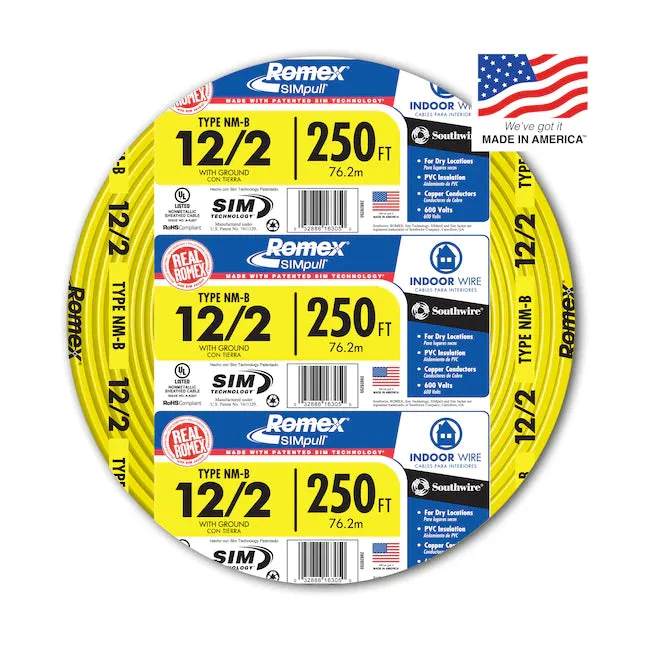

Southwire 250 ft. 12/2 Solid Romex SIMpull CU NM-B W/G Wire

Description

250 ft. 12/2 Solid Romex SIMpull CU NM-B W/G Wire

Type NM-B (nonmetallic-sheathed cable) may be used for both exposed and concealed work in normally dry locations at temperatures not to exceed 90 degree C (with-Ampacity limited to that for 60 degree C conductors) as specified in the NEC 1. NM-B cable is primarily used in residential wiring as branch circuits for outlets, switches and other loads. NM-B cable may be run in air voids of masonry block or tile walls where such walls are not subject to excessive moisture or dampness. Voltage rating for NM-B cable is 600-Volt.

• Copper conductors are annealed (soft) copper and UL Listed
• LTL curbside delivery only and will need to have a way to unload pallet, no forklift provided
• Cable is available in a variety of colors, lengths and gauges
• Unique (SlikQuik TM infused membrane) jacket TM construction allows for 50% reduction in pulling force resulting in easier installation
• LTL curbside delivery only, will need to have a way to unload pallet, no forklift provided
• NM-B has 2, 3 and 4 conductors and available with 2 neutrals, construction designed for easier pulling

OVERVIEW

Southwire’s SIMpull® designed for easier pulling, resulting in easier installation.

• Our Romex® SIMpull® NM-B can be used for exposed and concealed work in normally dry locations at temperatures not to exceed 90°C

• Primarily used in residential wiring as branch circuits for outlets, switches, and other loads

• May be run in air voids of masonry block or tile walls where such walls are not wet or damp locations

• Voltage rating for NM-B cable is 600 volts

• Copper conductors are annealed (soft) copper

• Southwire’s SIMpull® designed for easier pulling, resulting in easier installation

• UL Listed

• Weight per coil is approximately 20.5 lbs
