Description

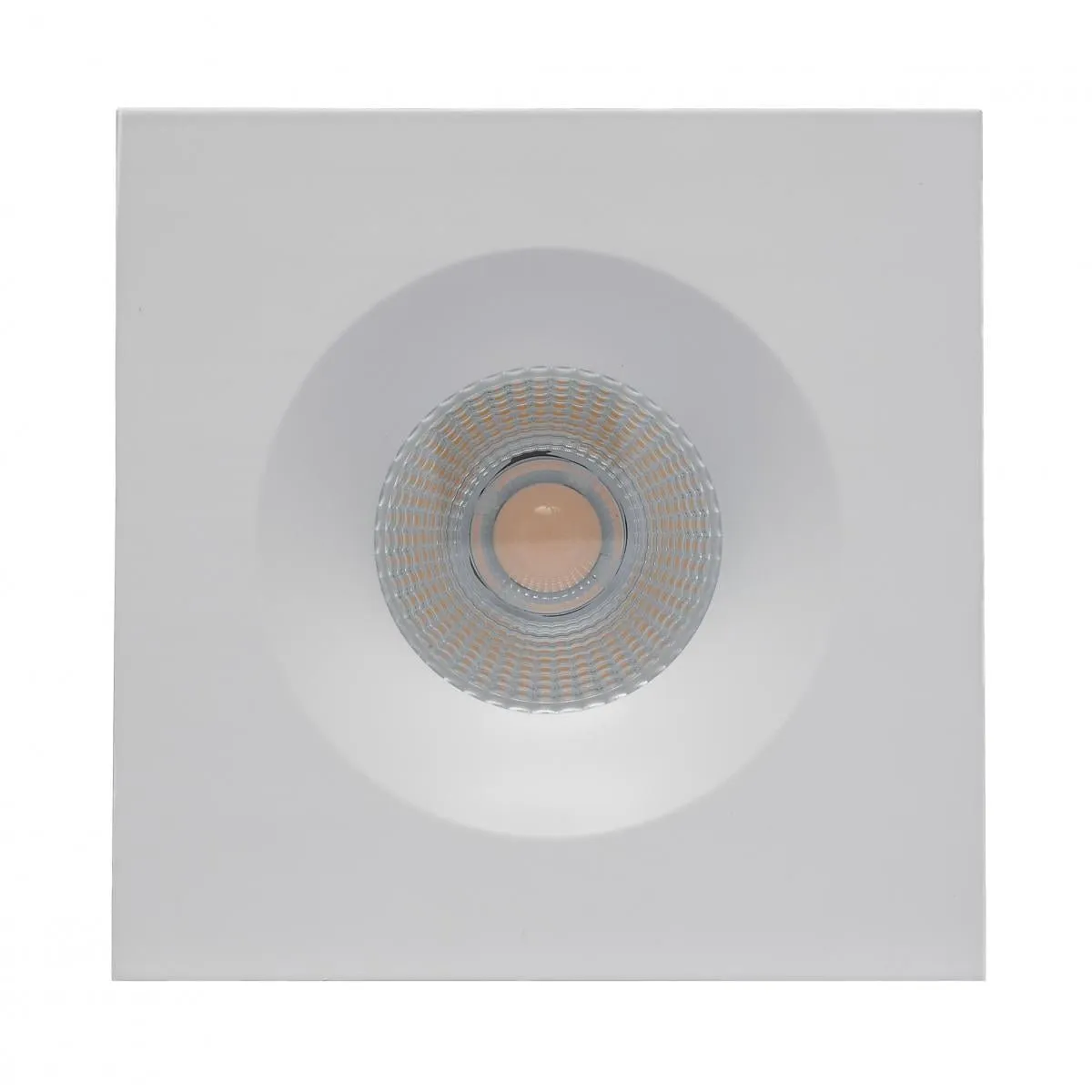

12W Square Gimbaled Downlights
This downlight features a 12 watt LED and a direct wire installation, with gimbaled technology and a 3.5 inch square design. The CCT can be easily selected to suit your needs, and the remote driver allows for seamless control. With a sleek white, black or brushed nickel finish, it offers a bright output of 840 lumens and is suitable for 120 volt systems.
| Status |
Active |
| Wattage |
12W |
| Voltage |
120V |
| Finish |
White |
| CCT (Kelvin) |
2700K/3000K/3500K/4000K/5000K |
| Color Temperature |
Warm White to Natural Light |
| Lumen Output |
840L |
| Indoor or Outdoor Fixture |
Indoor; Outdoor |
Spec Sheet
White / Black / Brushed Nickel
Installation Instructions
Info
| Technology |
LED |
| Wattage |
12W |
| Lumen Output |
840L |
| CCT (Kelvin) |
2700K/3000K/3500K/4000K/5000K |
| Color Temperature |
Warm White to Natural Light |
| CRI |
90 |
| Voltage |
120V |
| Beam Angle |
40 |
| Rated Hours |
50000 |
| Operating Temperature |
-20C (-4F) to +45C (+113F) |
| Dimmable |
Yes-Dimmable |
Dimensions
| Length (in.) |
4.38 |
| Width (in.) |
4.38 |
| Height (in.) |
2.1 |
| Weight (lb.) |
1.01 |
Additional Info
| Safety Listing |
cETLus – Listed |
| Location Rating |
Wet |
| Energy Star |
Yes |
| ES Unique ID |
ESID-2684097 |
| DLC Approved |
No |
| Air Tight Rated |
Yes |
| IC Rated |
Yes |
| CA T20 / T24 Rationale |
California T24 2016 – 2022 JA8 Listed |
| Title 20 / 24 Status |
California T24 Listed |
| California Prop 65 |
Lead |
| RoHS Compliant |
Yes |
| FCC Compliant |
Yes |
| SDS Sheet |
LED Lamp |
| Additional Information |
360 Degree Rotation; 30 Degree Tilt |
| Warranty |
5 Year Limited – Fixtures |
