Description

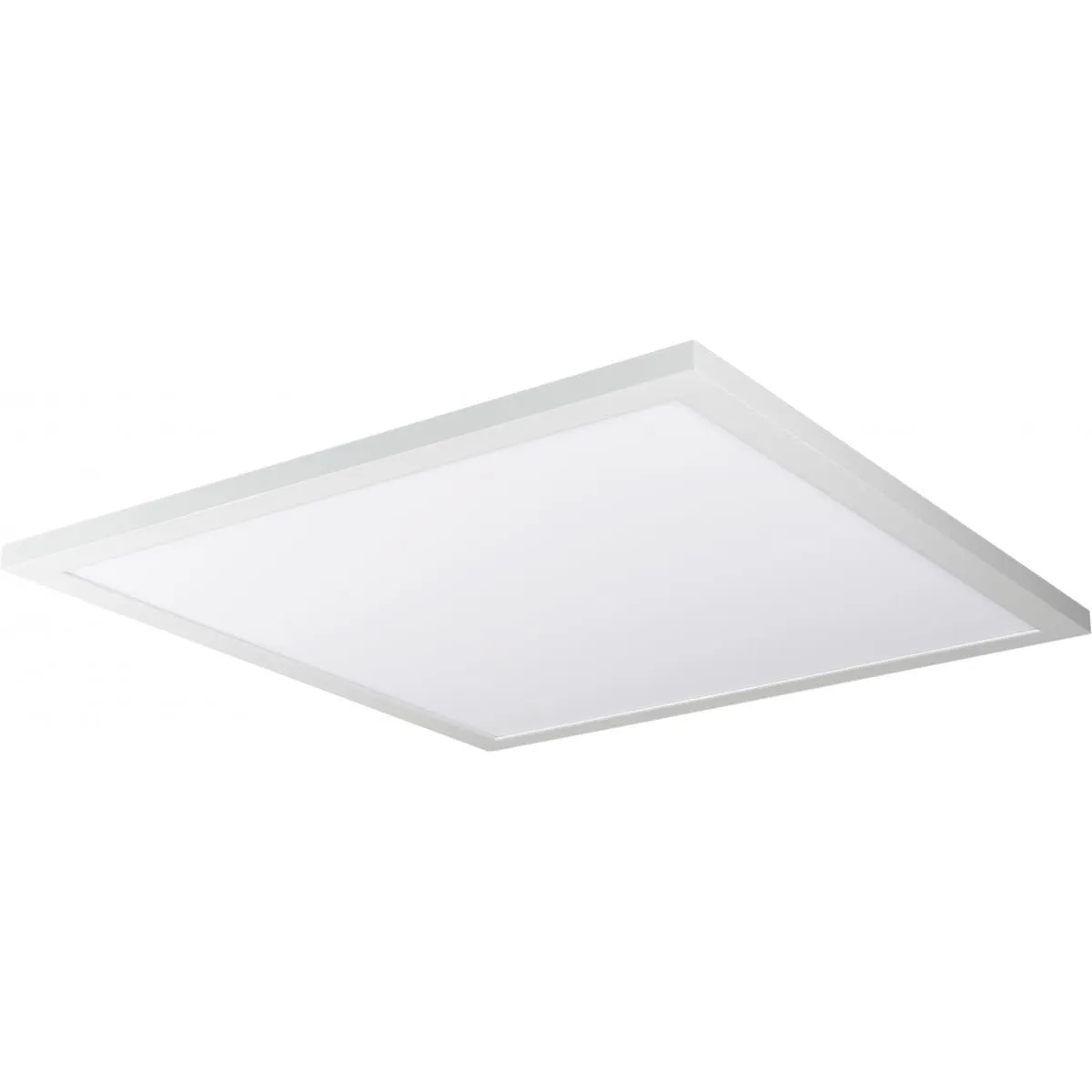

2X2 LED EM BACKLIT FLAT PANEL
LEDEmergency Backlit Flat Panel; 40 Watt; 2 ft. x 2 ft.; Selectable CCT; 100-347 Volt
| Status |
Active |
| Fixture Type |
Backlit Flat Panel |
| Finish |
White |
| Wattage |
40W |
| Lumen Output |
4400L-4600L |
| CCT (Kelvin) |
3500K/4000K/5000K |
| IP Rating |
IP20 |
| Indoor or Outdoor Fixture |
Indoor |
4FT Suspension KitSold Separately
Spec Sheets
Spec Sheet
Installation Instructions
Info
| Technology |
LED |
| Wattage |
40W |
| Lumen Output |
4400L-4600L |
| CCT (Kelvin) |
3500K/4000K/5000K |
| Color Temperature |
Warm to Cool White |
| CRI |
80+ |
| Voltage |
100V-347V |
| Beam Angle |
120 |
| Rated Hours |
50000 |
| Operating Temperature |
-17C (+1.4F) to a maximum of +45C (+113F) |
| Dimmable |
Yes-Dimmable |
| Dimming Note |
0-10V Dimming Only; Dimming range from 100 to less than or equal to 20 percent depending on dimmer control |
| Photocell |
No Photocell |
| Lens Material |
Poly methyl methacrylate (PMMA) |
| Weight (lb.) |
7.28 |
| IP Rating |
IP20 |
| Material |
Aluminum / Steel |
Dimensions
| Height (in.) |
2.88 |
| Width (in.) |
23.75 |
| Length (in.) |
23.75 |
Additional Info
| Safety Listing |
cETLus |
| Location Rating |
Damp |
| UL Application |
Ceiling |
| Energy Star |
No |
| DLC Approved |
Yes |
| DLC ID |
PLXWJELBYVI9 |
| CA T20 / T24 Rationale |
T20 Exempt – Fixtures Not Regulated |
| California Status |
Lawful for sale in California |
| California Prop 65 |
Lead |
| RoHS Compliant |
Yes |
| FCC Compliant |
Yes |
| Flicker Free |
Yes |
Additional Information
| Emergency |
90 Minute Backup |
| Warranty |
5 Year Limited – Fixtures |
