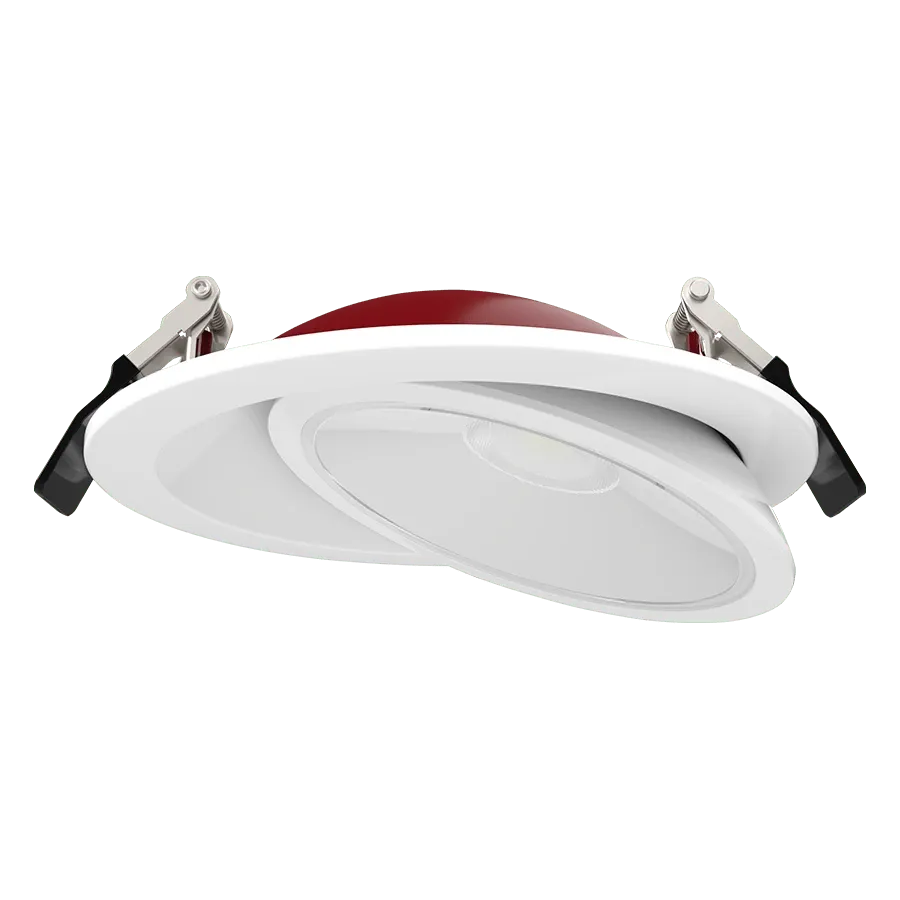

RAB FGIMBAL6 14W LED 6″ Downlight Gimbal Selectable CCT Fire Resistant
Original price was: $73.00.$21.90Current price is: $21.90.
Description
6″ Gimbal Field Adjustable Fire Resistant
Crafted to withstand high temperatures, the RAB FGIMBAL6 14W LED 6″ Downlight Gimbal Selectable CCT Fire Resistant is the perfect solution for customizable lighting in any environment. This field-adjustable downlight has been tested to UL 263 and ASTM E119 standards for 2-hour fire resistance, ensuring safety and reliability in any setting. With 5 selectable color temperatures, this gimbal downlight allows for easy adjustment at the flick of a switch, making it ideal for both new construction and retrofit applications. The low-profile design features an off-board driver that minimizes installation height and maximizes thermal management, eliminating the need for a traditional recessed housing. The downlight module can easily be linked to the remote driver with a plenum-rated cable connector and snapped into place with adjustable, spring-loaded retention clips. For maximum flexibility, the remote driver box has quick connectors, knockouts
- Adjustable gimbal with 90° tilt and 360° rotation
- 5 color temperatures in 1 SKU (2700/3000/3500/4000/5000K)
- Spring-loaded retention clips
- New construction or retrofit applications
- No recessed housing or j-box required
- Tested to UL 263 and ASTM E119 standards for 2-hour fire resistance.
- TRIAC/ELV dimming (see Dimmer Compatibility List)
- 50,000-Hour lifespan
Spec Sheets
Spec Sheet
FamilySpec Sheet
Sell Sheet
Installation Instructions
Info
| Product Type | Fire Resistant Wafer |
| Wattage | 14W |
| Lumen | 1300 |
| Color Temp. | Field Adjustable |
| CRI | 90 |
| L70 Lifespan | 50,000 |
| Enclosure Material | Metal |
| Finish | White+Red |
| Style | Smooth |
| Fire Rating |
Tested to UL 263 and ASTM E119 standards for 2-hour fire resistance. |
Additional Info
| Listings | UL Listed |
| Environment | Suitable for use indoors and outdoors in dry, damp, or wet environments. |
| IC Rated | Suitable for direct contact with insulation. Type IC inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations. Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013. |
| Air Tight | Housing certified Air Tight as per ASTM E283 |
| Energy Star Approved | This product is ENERGY STAR® Certified. |
| DLC Listed | No |
| California Title 24 JA8 Compliant | Can be used to conform with the requirements of California Title 24 Part 6 |
| California Energy Commission | Lawful for Sales in California |
| NEC Compliant | Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3). |
| IESNA LM-79 & LM-80 Testing | RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80. |
| RoHS | Mercury and UV free. RoHS-compliant components. |
| FCC | Complies with Part 15 of the FCC Rules |
