Description

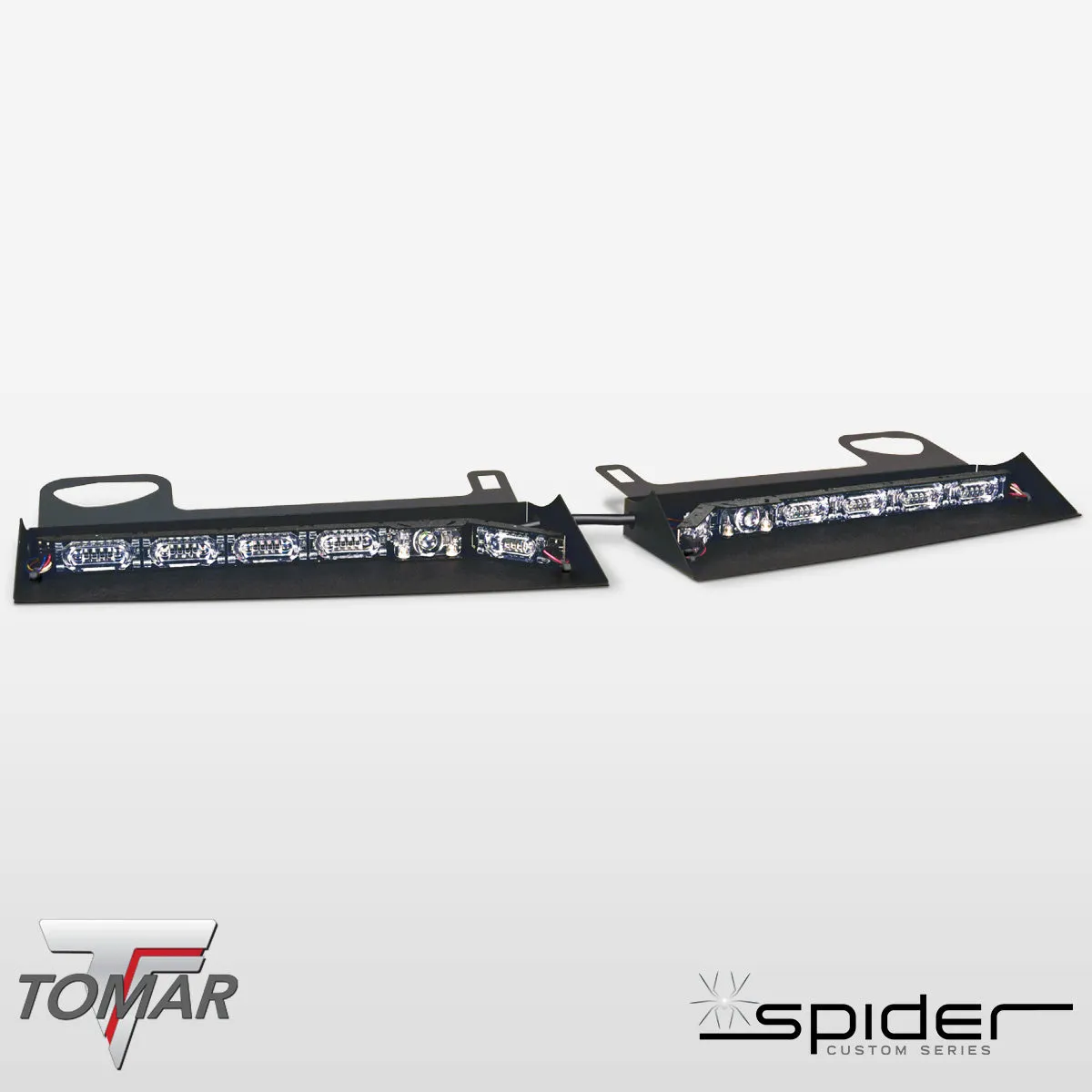

Enhance visibility and safety with TOMAR’s R37 Visor LED Light Kit – the perfect lighting companion for unmarked vehicles, undercover operations, and work trucks. Built to withstand the rigors of the field, this smart lamp offers unmatched durability and field-proven performance.
Trusted by professionals to get the job done.
This smart LED lamp is designed to provide powerful LED emergency/warning lights, ensuring your presence is noticed in any situation.
Key Features
- Adaptable Solution: Elevate safety on the road or job site by adding bright, attention-grabbing warning lights.
- Tailored to Your Needs: Personalize your lighting setup with programmable flash patterns and adjustable flash rates via the cigar-plug adapter.
- Utilizes TOMAR’s superior optical technology TOMAR’s optics are designed and engineered to maximize light output efficiently
- Assembled in-house at TOMAR headquarters located in Gilbert, Arizona, USA.
What’s Included
- QTY 1.R37 Revolution LED Light
- QTY 1. Moutning Kit with Hardware
- QTY 1. Cigar-plug adapter (Power Source)
Potential Uses
- Unmarked law enforcement vehicles
- Undercover operations
- Police, sheriff, and security vehicles
- Emergency response vehicles
- Search and rescue teams
- Construction and utility work trucks
- Roadside maintenance vehicles
- Towing and recovery vehicles
- Delivery and courier vehicles
- Traffic management vehicles
SPECS PER LIGHT (R37)
- Number of LEDs: 12 LEDs
- Dimensions:7.23w x 3.04h x 1.171d (18.59cm x 7.72cm x 2.97cm)
- Bezel Outside Dimensions (R37-BZ/R37-BZ-B): 8.13” X 3.94”
- Maximum Input Current (amp draw) R37 Warning Lights: 1.53A at 12.8VDC
- Warning Lamps
- Single Color (50% Duty Cycle): 0.79 Amps
- Dual Color (Both Colors Flashing – 100% Duty Cycle): 1.58 Amps
- Split Color Lamps (50% Duty Cycle): 0.79 Amps
Wiring Details:
Internal Flasher (Smart Mode):
- Red: Connect to Battery +12Vdc thru +24Vdc to activate
- Black: Connect to Battery GROUND
- Yellow: Sync Line
- Blue: Alternate Flash Pattern
Direct Control:
- Red: Connect to Battery +12Vdc thru +24Vdc to activate (Active Low Inputs Only)
- Black: Connect to Battery GROUND (Active High Inputs Only)
- Yellow: Side A or Color 1
- Blue: Side B or Color 2
IS Documents
- R37-V Instruction Manual
