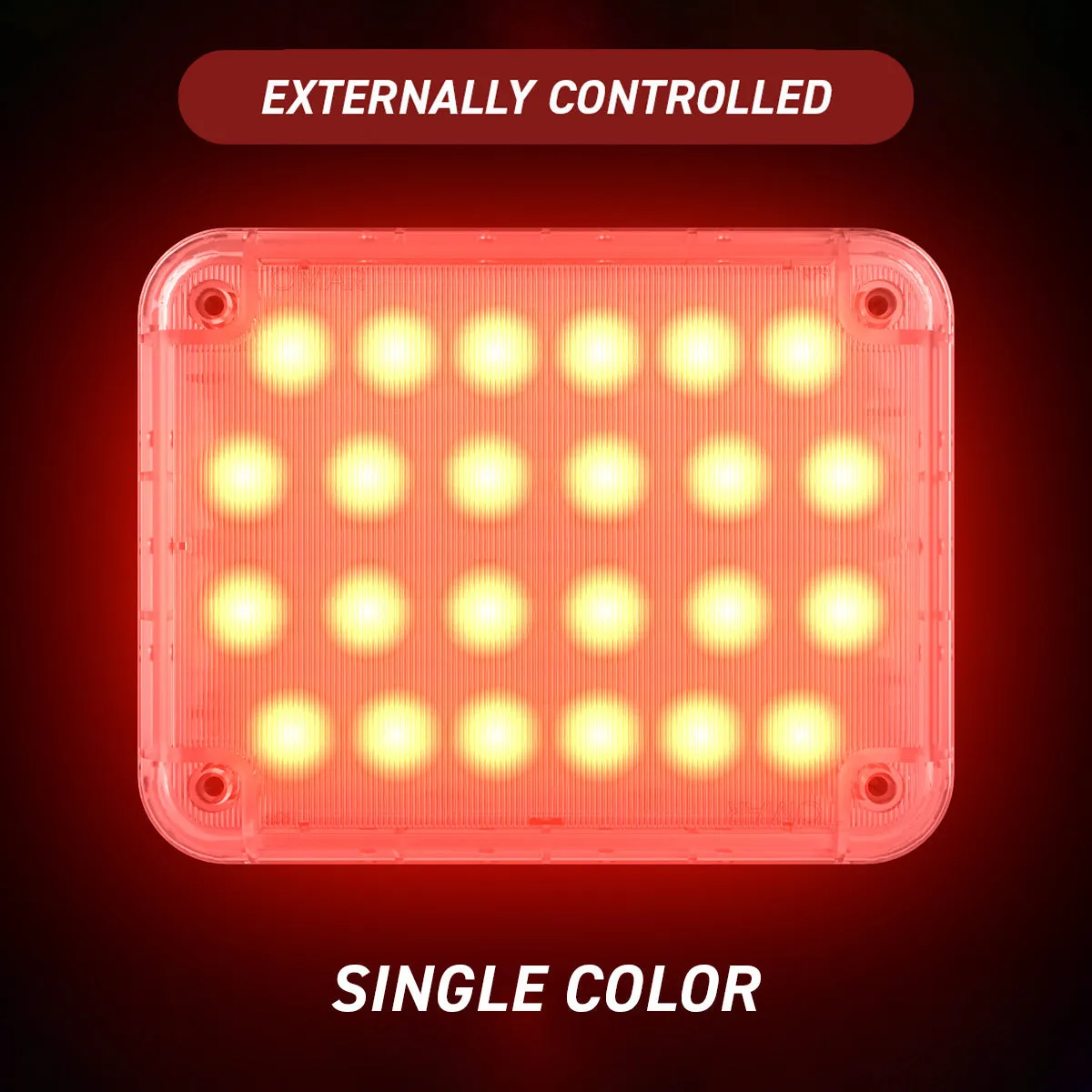

Name: R37 Revolution Series Single Color Externally Controlled LED Light
SKU: EGB719600
Availability: InStock

Description

TOMAR’s R37 Single Color Externally Controlled LED Light is a SAE compliant warning light. With our Single Warning LED Light you pick the warning color (red, blue, amber, green, and white) to meet you specfic needs, while using a external controller.

Externally Controlled

Externally controlled lamps have been pre-programmed to Direct Control Mode (steady-burn which bypasses the internal flasher) for use in systems where a centralized controller is controlling the timing of the warning lights. For single color lamps, the primary wire activates the steady-burn.

The lamps can be controlled by competitive products which can meet draw requirements and provide a 12-24 +VDC flash signal.

KEY FEATURES

High Intensity Warning and Work LED lights
Single Color Color Warning LED Light
Wide angle optical lens for maximum light output
Surface mounted to eliminate the need to make cutouts in your vehicle
Chrome and Black Bezels Available for a finished direct from the factory look and feel (see product options)
Meets CA Title 13
No Hassle 5 Year Warranty
Utilizes TOMAR’s superior optical technology TOMAR’s optics are designed and engineered to maximize light output efficiently
Assembled in-house at TOMAR headquarters located in Gilbert, Arizona, USA.

SPECS PER LIGHT (R37)

Dimensions:7.23w x 3.04h x 1.171d (18.59cm x 7.72cm x 2.97cm)
Bezel Outside Dimensions (R37-BZ/R37-BZ-B): 8.13” X 3.94”
Maximum Input Current (amp draw) R37 Warning Lights: 1.53A at 12.8VDC
Warning Lamps

Single Color (50% Duty Cycle): 0.79 Amps
Dual Color (Both Colors Flashing – 100% Duty Cycle): 1.58 Amps
Split Color Lamps (50% Duty Cycle): 0.79 Amps

Wiring Details:

Internal Flasher (Smart Mode):

Red: Connect to Battery +12Vdc thru +24Vdc to activate
Black: Connect to Battery GROUND
Yellow: Sync Line
Blue: Alternate Flash Pattern

Direct Control:

Red: Connect to Battery +12Vdc thru +24Vdc to activate (Active Low Inputs Only)
Black: Connect to Battery GROUND (Active High Inputs Only)
Yellow: Side A or Color 1
Blue: Side B or Color 2

NFPA 1900 Cumulative Lamp Totals Candela Seconds per Minute (Warning Lights):


Model	Single	Double	Neobe
R37L-W-A (Single Color)	969,975	484,988	678,983
R37L-W-B (Single Color)	701,325	350,663	490,928
R37L-W-R (Single Color)	897,675	448,838	628,373
R37L-W-W (Single Color)	2,286,150	1,143,075	1,600,305
R37LD-W-A (Dual-Color)	847,125	423,563	592,988
R37LD-W-B (Dual-Color)	540,675	270,338	378,473
R37LD-W-R (Dual-Color)	740,250	370,125	518,175
R37LD-W-W (Dual-Color)	1,719,999	860,000	1,203,999
