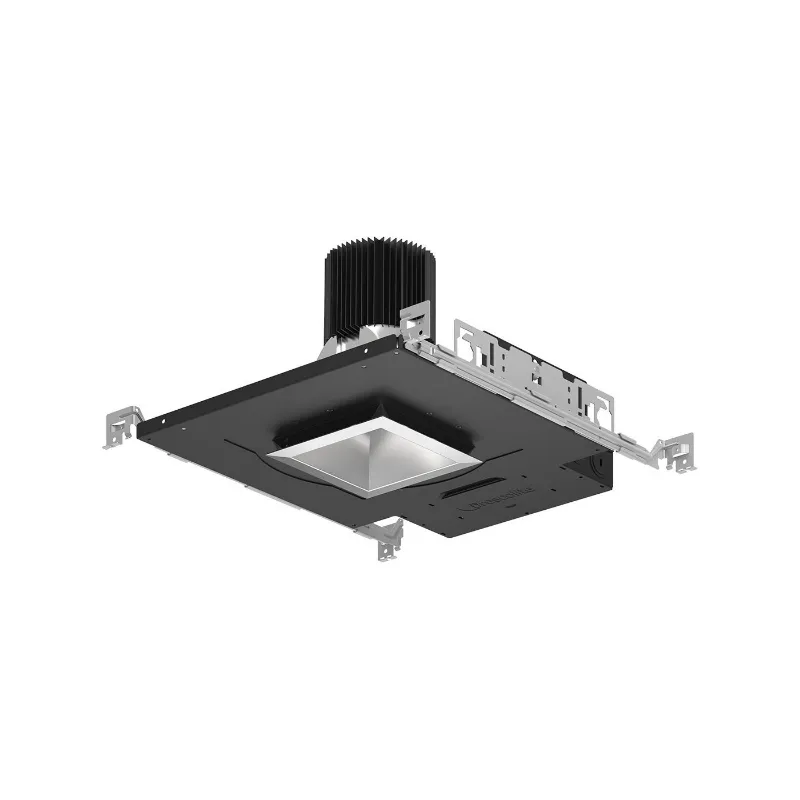

Prescolite LTR-4SQD-H LITEISTRY 4″ 18.6W Square LED New Construction Downlight Housing

Description

LITEISTRY™ offers a broad palette of architectural downlighting solutions with consistent aperture appearance, quiet ceiling design, and optical performance.

Features

• Trim sold separately
• Wattage: 18.6W
• Voltage: 120-277V
• Lumen Package: Standard Lumen
• Lumens: 1500
• 0-10V dimming to 1%
• Non-IC
• Painted black durable steel platform with pre-installed bar hangers
• Optical grade silicone lens integral to light engine
• Pre-wired junction box with snap-on covers for easy access
• Snap-in connection from driver compartment allows easy installation

Dimensions

• Aperture: 4″
• Length: 14.56″
• Width: 14.36″
• Height: 4.83″
• Ceiling Cutout: 5″
• Ceiling Thickness: 0.5″ – 1.25″

Estimated Life

• L90 at >55,000 hours (TM-21)

Warranty

• 5 Year Warranty

Documents

• Spec Sheet
• Instruction Sheet
