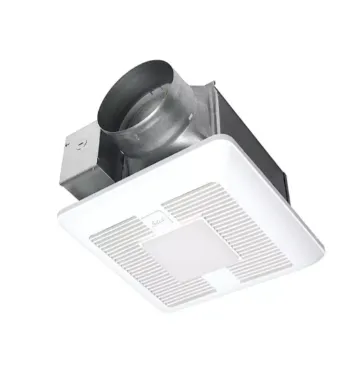

Panasonic FV-1115VKL2

FV-1115VKL2 Product

Reintroducing the WhisperGreen® Select brand of fans, our wholehouse IAQ solution with enhancements. First, our redesigned elegant grille incorporates a 10W dimmable LED chip panel with less than 1W LED night light for energy-efficient illumination. Another new feature is our single-hinged, Flex-Z Fast® bracket for more flexible and easy installation. Other enhancements include an environmentally-friendly, 26-gauge, Zinc-Aluminum-Magnesium (ZAM) housing design and dual access junction box that helps simplify wiring in tight spaces.

Features:

Customizable, all-in-one, wholehouse-precision ventilation solution ideal for use in the bathroom, laundry room, sun room, basement or garage
Pick-A-Flow® Airflow Selector features a built-in speed selector 110-130-150 CFM model) combined with SmartFlow™ technology. It simplifies the selection process, and ensures optimum performance to meet code and reduce callbacks
New! Elegant grille with integrated 10W dimmable LED chip panel with less than 1W LED night light. JA-8 compliant for CA Title 25
New! Environmentally-friendly, 26-gauge, Zinc-Aluminum-Magnesium (ZAM) housing design
New! Improved, Flex-Z Fast®; single-hinge bracket with added flexibility, fast and easy installation

Specifications:

Model number:FV-1115VKL2
Fan Type:Fan/Light -LED
Advanced Features:Pick-A-Flow™ Airflow Selector, ECM motor with SmartFlow technology, Dimmable LED Light
Air Volume Supply (CFM):@0.1= 110, 130, 150 @0.25= 110, 130, 150 @0.375= 107, 131, 127
Noise (Sones):@0.1″SP (110, 130CFM) = <0.3 , 0.4 @ 150CFM @0.25"SP(110,130,150 CFM) = 0.3, 0.5, 0.8
Power Consumption (Watts):110 CFM=7.5, 130=10.4, 150=14.9
Energy Efficiency (CFM/Watt):110 CFM=14.6, 130=12.5, 150=10.1
Current (Amps):110 CFM=0.08, 130=0.11, 150=0.15
Power Rating (V/Hz):120/60
Motor Type (AC/DC):DC (ECM)
ENERGY STAR® Certified:Yes
Other Approved Codes and Standards:ASHRAE 62.2, LEED, CA T-24, CALGreen
Duct Diameter:6 inch
Mounting Options:Horizontal
Ventilation Design Approach:Bathroom Exhaust Fan
Warranty:6 years ECM Motor, 3 years all other parts
Industry:Residential, Light Commercial
Radiation Damper Available:Yes, PC-RD05C5
Master Carton Gross Weight (lbs.):12.55 (1 unit)
Master Carton Dimensions (HxWxD):11.85 x 14.17 x 16.73
UL Listed for Tub/Shower Enclosure when GFCI Protected:Yes
