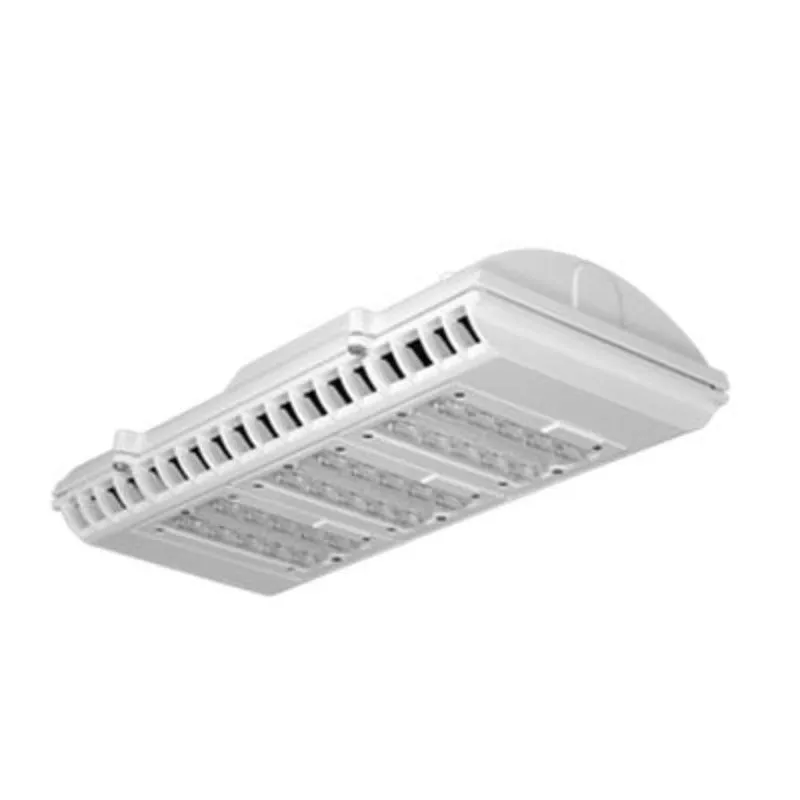

Lithonia DSXSC D-Series 74W LED Surface Canopy

Description

The D-Series LED Surface Canopy luminaire is ideal for covered walkways or drive-thrus, semicovered outdoor aisles, and walk-in coolers and freezers.

Features

• Finish: White
• Wattage: 74W
• Number of LEDs: 20 LEDs (two engines)
• Drive Current: 1000 mA (1 A)
• Color Temperature: 5000K
• Distribution: Type V, Medium
• Mounting: Surface Mount
• Lumens: 6623
• CRI: 65
• Expected service life of over 100,000 hours (20 years of nighttime operation)
• Intended for canopy lighting in commercial, industrial and institutional applications with mounting heights of 8 ft – 15 ft
• Mounts to a 4×4 recessed or surface mount outlet box using a quick mount kit (included). Supply leads are 12″ length as standard.

Dimensions

• Length: 17-3/4″
• Width: 8-1/2″
• Height: 3-7/16″

Lamping

• 74W 20 LEDs (5000K) – Included

Documents

• Spec Sheet
• Instruction Sheet
