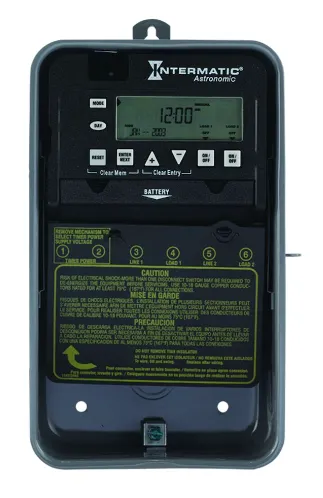

Intermatic ET8215C

ET8215C Product

This series offers an easy way to upgrade from a basic mechanical time switch to an electronic time switch. These timers will allow for up-to-the-minute programming, battery backup for power loss, up to 28 events total, and automatic daylight saving time corrections without the need of user interaction. They come in standard 24-hour, 7-day and 7-day astronomic versions.

Specification:

Brand: ‎Intermatic
Part Number:‎ET2845CR
Stock Code ET8215C
Family 7-Day Electronic Astronomic Time Switches
Voltage (V) 120/208/240/277 Volt 50/60Hz
Amperage 30 Amps
Amp Rating 30A
Pole (2P) Double Pole
Width (in) 5
Height (in) 7.75
Depth (in.) 3
Color Gray
Minimum ON/OFF Time 1 minute
Maximum ON/OFF Time: 6 days 23 hours 59 minutes
Battery Back Up Yes
Housing NEMA 1 Indoor Steel
HP Rating: 1 HP / 2 HP
Set Points: Up to 28 set points or events ( 14 ON/14 OFF per channel)
Switch Type: 2xSPST or DPST
Operates 2 Circuit
Motor: See Specification
Start Temp. (Min) -40°F (-40°C)
Start Temp. (Max) 155°F (68°C)
UL Listed CSA, CSAus, California Title 24,
Warranty 1 Year
Notes All models come with two industrial-grade AAA alkaline batteries
