Description

ELCO Lighting EWP30S50

EWP30S50Product

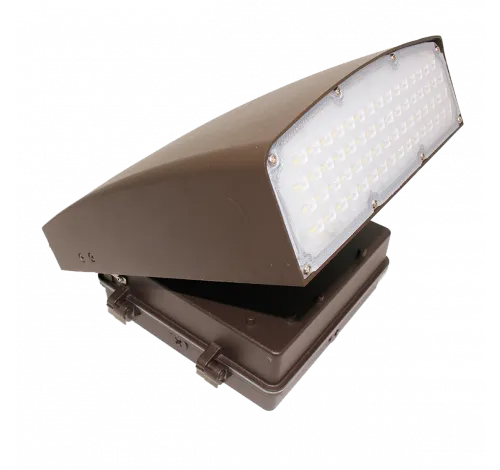

LED Small Wall Packs

FEATURES :

Non-Dimmable LED Small Wall Pack.
Die-cast Aluminum Housing, polycarbonate lens.
Easily removed mounting knockouts and J-box pattern
panel plate.
J-box or direct wall mount for surface conduit (back
mount).

SPECIFICATION :

Wattage 30W
Lumens 3800 lm – 3900 lm
Voltage 120/277V
Color Temp. 4000K – 5000K
Lamp Type LED
Power Factor >0.9
Wet Location Listed

Lamp:
SMD LED, CRI 80+

Optics:
Shatterproof polycarbonate lens.

Construction:
Die-cast aluminum housing with dark bronze powder coated finish.
Impact and corrosion resistant.

Installation:
3/4″ knockout points on the side and top for surface conduit supply or photocell connection.
Hinges for easy installation.

Electrical:
Constant current 120/277V AC Class 2 Driver with a power factor > 0.9. Ambient operating
temperature: -40°F (-40ºC) to 113°F (45°C).

Dimmability (Optional):
Works with 0-10V type dimmers. For full list of dimmers, refer to the dimmer
compatability list.

Listings:
UL listed for wet location. DLC listed. LM-80 certified. IP65 rated.

Warranty:
ELCO Lighting warrants products will be free from defects in materials and workmanship for a period of 5 years.

About Elco Lighting :

Founded in 1991 by its president, Steve Cohen, ELCO Lighting develops and markets lighting products for commercial and residential applications. Founded on the philosophy that high-quality commercial and residential lighting should be sold at a fair market price, Elco Lighting has designed and engineered lighting for residential and commercial spaces for almost two decades. Their product line includes track and recessed lighting fixtures, exit and emergency lights, under cabinet lighting, wall packs, step lights and more.
