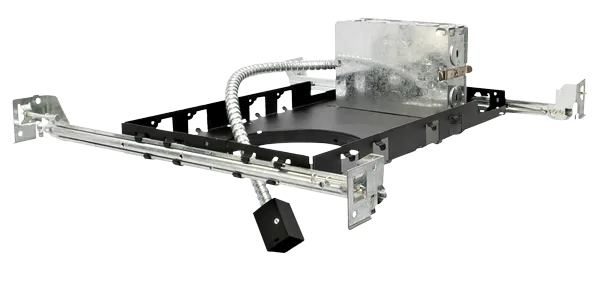

ELCO Lighting E4FH12ICA Cedar System Modern 4 inch New Construction 2-Hour Fire Rated Recessed Lighting Housing with Driver 1250 Lumens 120V

Description

UL Listed for 2-Hour Fire Resistance to meet and exceed strict fire safety codes.
Integrated Non-combustible insulation acts as a sound barrier minimizing sound transfer between floors.
Optional 90 minutes, 120/277 VAC, 60Hz, Emergency Backup.
ENERGY STAR® Certified.
Flicker-Free Dimming.
USA designed and assembled.
Limited 5 year warranty.
For use with ELCO Cedar™ System 4″ LED Light Engines.

SPECIFICATIONS :

Lumens 850 lm
Voltage 120/277V or 120V
Dimmable Triac/ELV,
Triac/ELV/0-10V, Sunset
Power Factor ≥0.95
Damp LocationListed

Construction:
Double wall IC rated for direct contact with insulation. For use in IC and non-IC conditions. Up to 1250 lumens.
Housing adjusts in frame to accommodate up to 1 1/2″ ceiling thickness.
Airtight housing with gasket to restrict airflow in accordance with ASTM E-283 air-tight requirements.

Installation:
Designed for ceiling plenums where 2×8 joists or taller are used.
High strength hanger bars can easily be nailed to joists.
Suitable for T-grid and drop ceiling applications.
See installation sheet for detailed information.
Emergency Battery Back-up Option requires access from above

Junction Box: Positioned to accommodate straight conduit runs. Two 3/4″ knockouts, Seven 1/2” trade size conduit knockouts, One 3/8″ knockout. Four Pry-out knockout slots for easy romex installation.

Hanger Bars: Pre Installed hanger bars with True Nail easy installation in regular lumber, engineered lumber, and Laminated Beams. Integral T-bar slots for easy installation in T-Bars. Spans up 24″ and can be repositioned 90°. Score lines allow for tool-free hanger bar size reduction. Integral leveling flange allows for single-person installation while easily aligning the housings with the joists.

Electrical:
Driver is rated for 120V and 277V input (120/277V).
High Efficiency driver with a power factor > 0.95.

Dimmability:
3 in 1 dimming: Triac, ELV and 0-10V dimming in one driver.
0-10V dimming down to 5% with a compatible dimmer.
Can be specified with Lutron drivers for 0.1% and 1% dimming.
For a full list of dimmers refer to the Dimmer Compatibility List.

Listings: UL Listed for Damp Location and for Wet Location with select trims. UL Listed for Direct Contact with Insulation and Combustible Material. UL Listed for Feed Through.
