Description
Eiko LLW2/PS24/8FCCT/HD
LLW2/PS24/8FCCT/HD Product

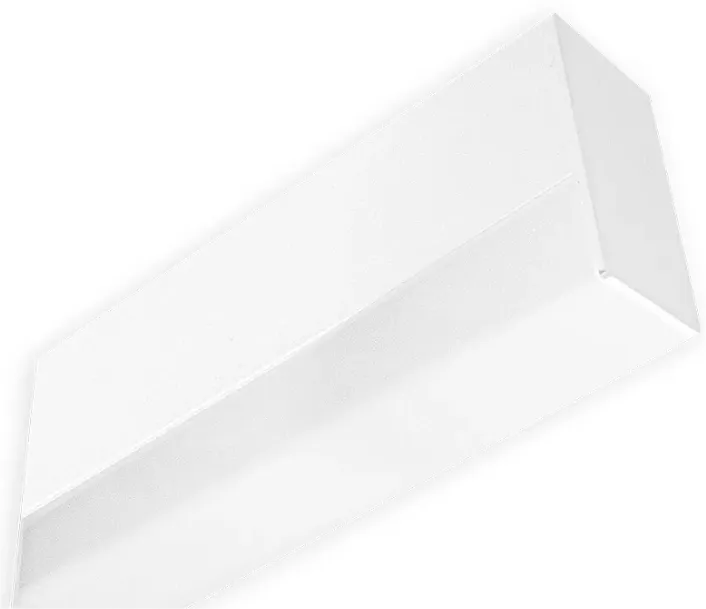

The 2-foot LED fixture operates on 120-347VAC and offers selectable lumen outputs (1,840 / 2,300 / 2,760 lm) at 16W, 20W, and 24W, with an efficacy of 115 lm/W. Available in 3500K, 4000K, and 5000K CCT options, it features a CRI of 80+ and 0-10V dimming. This DLC Standard and UL-listed fixture is suitable for damp locations and is RoHS and FCC compliant. It also includes a 12V, 200mA auxiliary output and is designed to operate in temperatures ranging from -4°F to 122°F (-20°C to 50°C). The housing is white, and the lens is made of durable polycarbonate.
Specifications:
Brand: EiKO
Voltage: 120-347VAC
Lumens (lm): 1,840 / 2,300 / 2,760 lm
Wattage: 16 / 20 / 24W
Efficacy (lm/W): 115 lm/W
CCT (Color Temperature): 3500K / 4000K / 5000K
CRI (Color Rendering Index): 80+
Dimming: 0-10V
Nominal Size: 2 Foot
DLC Version: DLC Standard
T20 Status: Exempt
Wet/Damp/Dry Location Rating: Damp
RoHS Compliant: Yes
FCC Compliant: Yes
UL Listed: Yes
Length: 27 3/16″ [691 mm]
Width: 5 5/16″ [135 mm]
Height: 2 1/8″ [54 mm]
Housing Color: White
Lens Material: Polycarbonate (PC)
Operating Temperature Range: -4°F to 122°F (-20°C to 50°C)
Auxiliary Output: 12V, 200mA
SKU: LLW2/PS24/8FCCT/HD
UPC: 31293125781
About Eiko:
EiKO, founded on entrepreneurial spirit over 46 years ago, has grown from a specialty lamp company to a leading provider of traditional lamps, LED lamps, fixtures, wireless sensors, and controls, serving industrial and commercial customers across the US and Canada. Agile and responsive to the ever-changing lighting industry, EiKO remains committed to delivering innovative solutions and exceptional customer experiences. With a strong focus on putting customers first, EiKO continues to evolve, expand its product offerings, and maintain its reputation for excellence, ensuring continued growth and success in an increasingly dynamic market.
