Description

Eiko HBX2-2005-2-B215-M2

HBX2-2005-2-B215-M2 Product

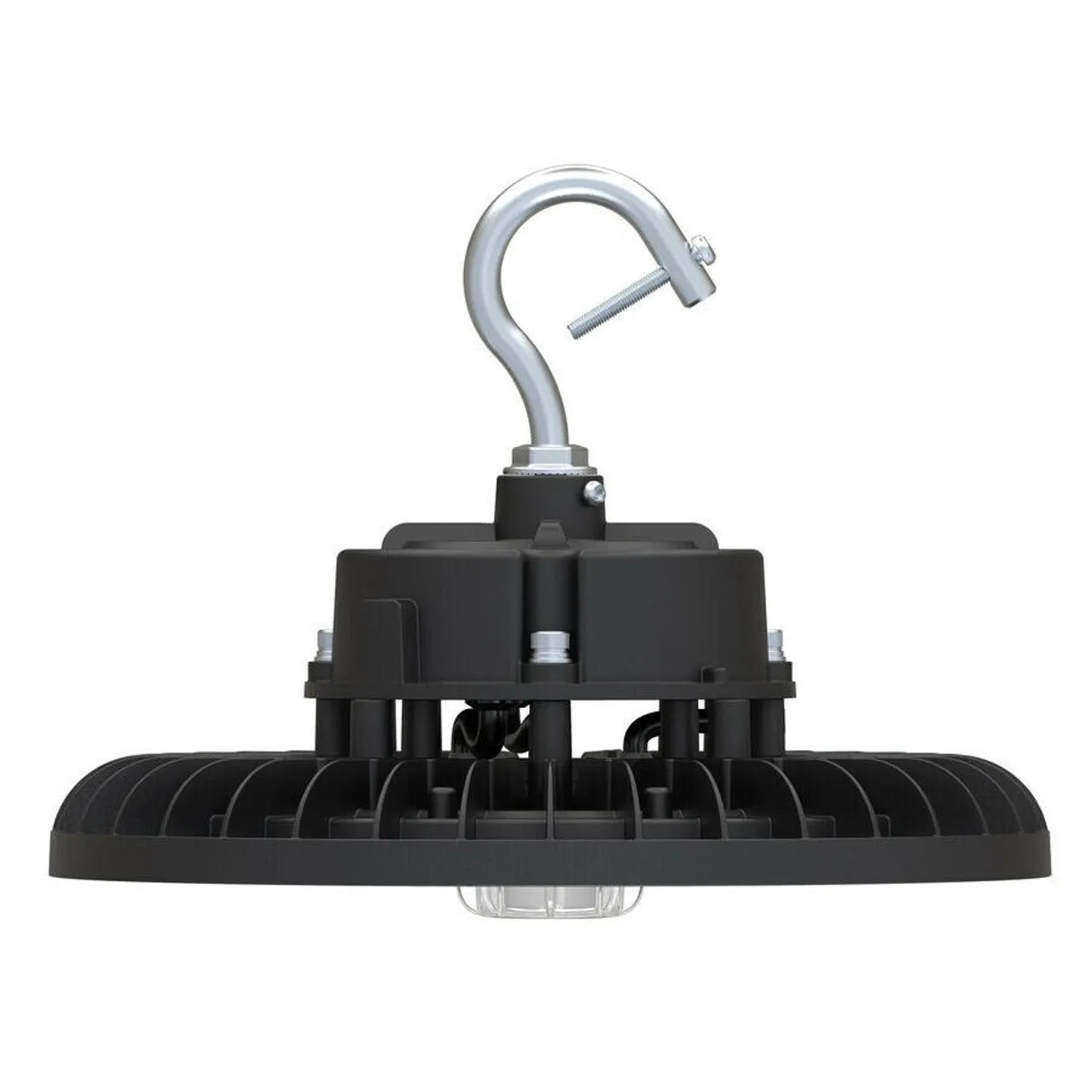

The HBX2-Series is the most versatile Monopoint High Bay offered in the North American market. Built with lightweight aluminum die cast construction it is a lightweight fixture that can be configured for almost any application.With multiple configurable options including mounting methods, reflectors, wire guards, frosted lens, side or center mount 12V remote controlled motion sensors and surge protectors the HBX2 is the only high bay you’ll need to consider to meet the demands of every project.

Specifications:

Voltage277-480VAC
Lumens (lm)30,278 lm
Wattage200W
Efficacy (lm/W)151 lm/W
CCT5000
CRI80+
Dimming0-10
Nominal Size13 Inch
Replacement For/EquivalentUp to 600W HID
DLC VersionDLC Premium
T20 StatusExempt
IP RatingIP65
Wet/Damp/Dry LocationWet
IK Rating10
RoHS CompliantYes
FCC CompliantYes
Vibration Rating3G
ULYes
Dimensions (L x W x H)D: Ø13″ (Ø330 mm), H: 7 3/4″ (196 mm)
Housing ColorMatte Black
Lens MaterialPolycarbonate (PC)
Operating Temp Range (°F/°C)-40F to 122F (-40C to 50C)
Driver Surge Protection (kV)L/N-PE: 10kV, L-N: 10kV
Additional Surge Protection (kV)10kV included, 20kV option
Auxiliary Output12V, 300mA
Warranty5 Years
Brand Eiko

About Eiko:

EiKO, founded on entrepreneurial spirit over 46 years ago, has grown from a specialty lamp company to a leading provider of traditional lamps, LED lamps, fixtures, wireless sensors, and controls, serving industrial and commercial customers across the US and Canada. Agile and responsive to the ever-changing lighting industry, EiKO remains committed to delivering innovative solutions and exceptional customer experiences. With a strong focus on putting customers first, EiKO continues to evolve, expand its product offerings, and maintain its reputation for excellence, ensuring continued growth and success in an increasingly dynamic market.
