Description

Diode LED DI-TB12-CONN-TTW-1

DI-TB12-CONN-TTW-1 Product

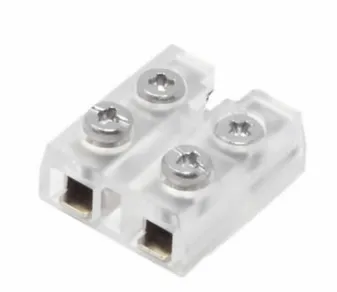

Create easy, fast, and secure tape light connections with the 12mm Tape Light Terminal Block Connector. It features screw down connections and a small form factor for minimal presence in tight spaces.

Specifications:

Works with 12mm wide tape light only (Wire not included)
Voltage: 12-24 VDC
Max. Amperage: 12V – 5A / 24V – 4A
Wire Gauge: 14 AWG – 20 AWG
Dimensions: Length = 0.62″, Width = 0.59″, Height = 0.26″
Environment: Indoor
Ambient Temperature: -4° – 122°F (-20° – 50°C)
Warranty: 5 Year

About Diode LED:

Diode LED is America’s largest low-voltage linear lighting solutions provider and is preferred by lighting designers, architects, product specifiers, electricians, and general contractors.
