Description

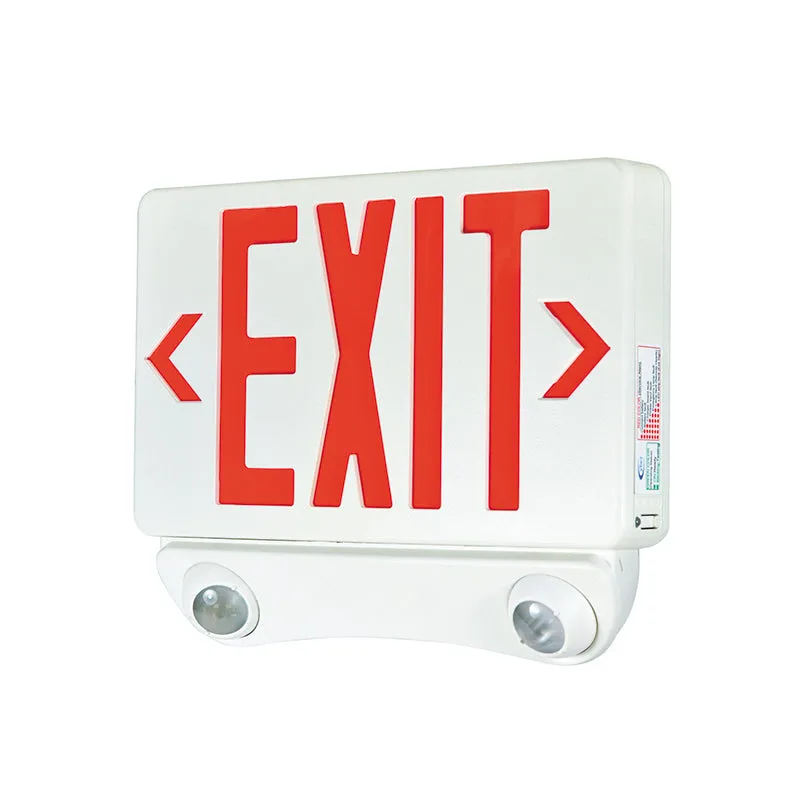

Chloride Value+ LED exit/unit combo (VLTC) is an economically oriented combo that features a low profile design and offers a stylish appeal, making it an ideal solution for any general purpose application. The VLTC’s compact housing is very small compared to traditional combos and offers excellent performance with its long life LEDs.
Features
- Housing Color: White
- Letter Color: Red
- Wattage: 2W, 1W per Head
- Voltage: 3.6V
- 120/277VAC, 60Hz dual voltageselectable input
- Color Temperature: 6000K
- Lumens: 200
- Remote Capability: 2 – 1W or 1 – 2W heads
- Fully adjustable LED lamp heads can provideforward or backward emergency illumination
- Thermoplastic (white) ABS housing
- Wall or ceiling mounted – provisions forsurface mounted conduit to top of wallmounted unit
Dimensions
- Width: 13″
- Height: 12.5″
- Depth: 2.56″
Warranty
- 3 Year Limited warranty on electronics, LEDs, and battery
Documents
- Spec Sheet
- Instruction Sheet
